Groundplans

If you are creating your own exercise based on Cue Builder, you might like to have a groundplan for one or more of the included settings. The settings can be used readily for a variety of shows. I believe they have been used for A Midsummer Night’s Dream and She Kills Monsters, but there could be many more. Click any groundplan to save the image as a JPEG. They are also available in AutoCAD format.

Above: “Greek Ruins” setting. Below: groundplan.

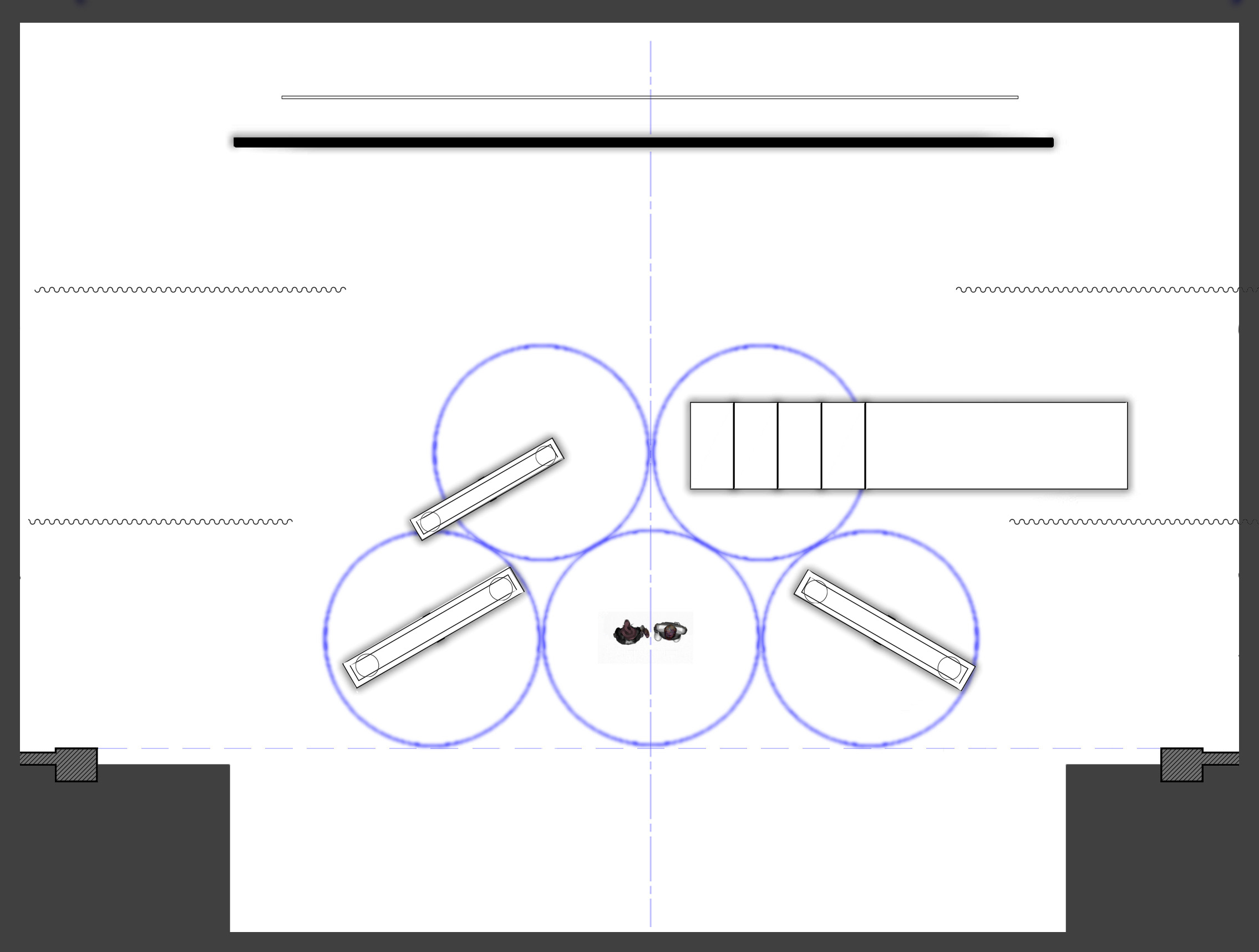

Groundplan for “Greek Ruins.” For reference, the apron is 40 feet wide.
Above: Interior” setting. Below: Groundplan.
Groundplan for “Interior” setting. For reference, the apron is 40 feet wide.
Above: “Abstract Shapes” setting. Below: Groundplan.
Groundplan for “Abstract shapes.” For reference, the apron is 40 feet wide.

AutoCAD Format:

These are available (all three together) in a single AutoCAD file here.
