She Kills Monsters

Posted on by Kizer

Plymouth State University
October 2026

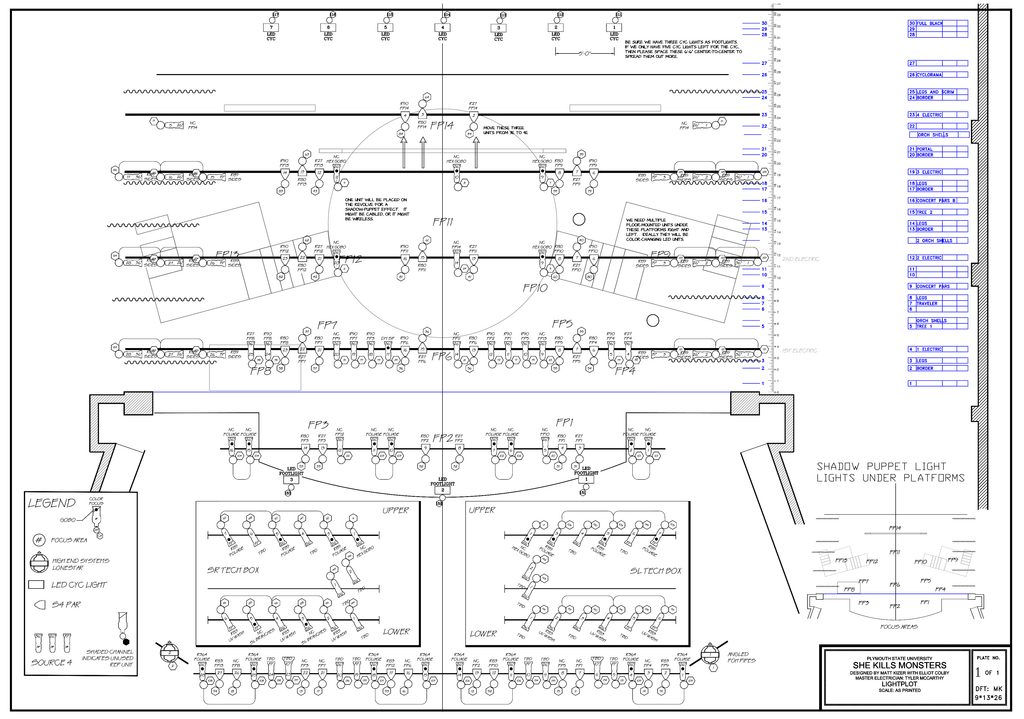

She Kills Monsters Light Plot
AutoCAD DWG Format
PDF Format
Channel Hookup PDF
Channel Hookup Excel

ChanColorFocusPositionUnitDimTypeWatts
1N/AMOVERFOH PIPES1CHAUVET575HID
2N/AMOVERFOH PIPES2CHAUVET575HID
3NCHEX GOBOSL UPPER TECH B1Source Four 26°575
4NCHEX GOBOSR UPPER TECH B1Source Four 26°575
5NCHEX GOBO2ND ELECTRIC9Source Four 26°575
6NCHEX GOBO2ND ELECTRIC20Source Four 26°575
7NCHEX GOBO3RD ELECTRIC9Source Four 26°575
8NCHEX GOBO3RD ELECTRIC10Source Four 26°575
9NCHEX GOBO3RD ELECTRIC11Source Four 26°575
11NCFP1MIDCAT7S4 PAR575
12NCFP2MIDCAT13S4 PAR575
13NCFP3MIDCAT22S4 PAR575
14NCFP4MIDCAT3S4 PAR575
15NCFP5MIDCAT8S4 PAR575
16NCFP6MIDCAT16S4 PAR575
17NCFP143RD ELECTRIC5Source Four 26°575
17NCFP143RD ELECTRIC1Source Four 26°575
17NCFP7MIDCAT21S4 PAR2
18NCFP8MIDCAT26S4 PAR575
19NCFP91ST ELECTRIC20Source Four 26°575
20NCFP10NEAR CAT5Source Four 26°575
21NCFP111ST ELECTRIC14Source Four 26°575
22NCFP12NEAR CAT12Source Four 26°575
23NCFP131ST ELECTRIC9Source Four 26°575
24NCFP142ND ELECTRIC14Source Four 26°575
29NCDM SP1ST ELECTRIC17Source Four 36°575
31R27FP1NEAR CAT3S4 PAR575
32R27FP2NEAR CAT8S4 PAR575
33R27FP3NEAR CAT13S4 PAR575
34R27FP41ST ELECTRIC4Source Four 36°575
35R27FP51ST ELECTRIC7S4 PARLED
36R90FP61ST ELECTRIC16S4 PAR575
36R27FP61ST ELECTRIC15LED COIDAKLED
37R27FP71ST ELECTRIC22LED COIDAKLED
38R27FP81ST ELECTRIC25Source Four 36°575
39R27FP93RD ELECTRIC7S4 PARLED
40R27FP103RD ELECTRIC7S4 PARLED
41R27FP112ND ELECTRIC13S4 PAR575
42R27FP122ND ELECTRIC21S4 PAR575
43R27FP133RD ELECTRIC12S4 PAR575
44R27FP144TH ELECTRIC2S4 PAR575
51R80FP1NEAR CAT4S4 PAR575
52R80FP2NEAR CAT9S4 PAR575
53R80FP3NEAR CAT14S4 PAR575
54R80FP41ST ELECTRIC6S4 PAR575
55R80FP51ST ELECTRIC8S4 PAR575
56R80FP61ST ELECTRIC13S4 PAR575
57R80FP71ST ELECTRIC21S4 PAR575
58R80FP81ST ELECTRIC23S4 PAR575
59R80FP93RD ELECTRIC8S4 PAR575
60R80FP102ND ELECTRIC8S4 PAR575
61R80FP112ND ELECTRIC15S4 PARLED
62R80FP122ND ELECTRIC22S4 PARLED
63R80FP133RD ELECTRIC13S4 PARLED
64R80FP144TH ELECTRIC3S4 PARLED
71R90FP11ST ELECTRIC11Source Four 36°575
72R90FP21ST ELECTRIC12Source Four 36°575
73R90FP31ST ELECTRIC18Source Four 36°575
74R90FP41ST ELECTRIC5Source Four 36°575
75R90FP51ST ELECTRIC10Source Four 36°575
77R90FP71ST ELECTRIC19Source Four 36°575
78R90FP81ST ELECTRIC24Source Four 36°575
79R90FP93RD ELECTRIC6S4 PAR575
80R90FP102ND ELECTRIC6S4 PAR575
81R90FP112ND ELECTRIC16S4 PAR575
82R90FP122ND ELECTRIC23S4 PAR575
83R90FP133RD ELECTRIC14S4 PAR575
84R90FP144TH ELECTRIC4S4 PAR575
91R83FP9MIDCAT2S4 PAR575
92R83FP10MIDCAT12S4 PAR575
93R83FP12MIDCAT17S4 PAR575
94R83FP13MIDCAT27S4 PAR575
95R83UV WASHSL LOWER TECH B2Source Four 36°575
95R83UV WASHSL LOWER TECH B4Source Four 26°575
95R83UV WASHSL LOWER TECH B6Source Four 19°575
96R83UV WASHSR LOWER TECH B2Source Four 36°575
96R83UV WASHSR LOWER TECH B4Source Four 26°575
96R83UV WASHSR LOWER TECH B6Source Four 19°575
101NCFOLIAGENEAR CAT2Source Four 26°575
101NCFOLIAGENEAR CAT1Source Four 26°575
102NCFOLIAGENEAR CAT7Source Four 26°575
102NCFOLIAGENEAR CAT6Source Four 26°575
103NCFOLIAGENEAR CAT11Source Four 26°575
103NCFOLIAGENEAR CAT10Source Four 26°575
104NCFOLIAGENEAR CAT16Source Four 26°575
104NCFOLIAGENEAR CAT15Source Four 26°575
105R364FOLIAGEMIDCAT4Source Four 26°575
105R364FOLIAGEMIDCAT1Source Four 26°575
106R364FOLIAGEMIDCAT14Source Four 26°575
106R364FOLIAGEMIDCAT11Source Four 26°575
107R364FOLIAGEMIDCAT18Source Four 26°575
107R364FOLIAGEMIDCAT15Source Four 26°575
108R364FOLIAGEMIDCAT28Source Four 26°575
108R364FOLIAGEMIDCAT25Source Four 26°575
109R89FOLIAGESL UPPER TECH B3Source Four 26°575
109R89FOLIAGESL UPPER TECH B5Source Four 26°575
109R89FOLIAGESL UPPER TECH B7Source Four 19°575
110R89FOLIAGESR UPPER TECH B3Source Four 26°575
110R89FOLIAGESR UPPER TECH B5Source Four 26°575
110R89FOLIAGESR UPPER TECH B7Source Four 19°575
111LEDCYCFLOOR1CYC LIGHT133
112LEDCYCFLOOR2CYC LIGHT133
113LEDCYCFLOOR3CYC LIGHT133
114LEDCYCFLOOR4CYC LIGHT133
115LEDCYCFLOOR5CYC LIGHT133
116LEDCYCFLOOR6CYC LIGHT133
117LEDCYCFLOOR7CYC LIGHT133
121R89SIDES1ST ELECTRIC1Source Four 36°575
121R89SIDES1ST ELECTRIC2Source Four 26°575
121R89SIDES1ST ELECTRIC3Source Four 19°575
122R89SIDES1ST ELECTRIC28Source Four 36°575
122R89SIDES1ST ELECTRIC27Source Four 26°575
122R89SIDES1ST ELECTRIC26Source Four 19°575
123R89SIDES2ND ELECTRIC1Source Four 36°575
123R89SIDES2ND ELECTRIC2Source Four 26°575
123R89SIDES2ND ELECTRIC3Source Four 19°575
124R89SIDES2ND ELECTRIC28Source Four 36°575
124R89SIDES2ND ELECTRIC27Source Four 26°575
124R89SIDES2ND ELECTRIC26Source Four 19°575
125R89SIDES3RD ELECTRIC1Source Four 36°575
125R89SIDES3RD ELECTRIC2Source Four 26°575
125R89SIDES3RD ELECTRIC3Source Four 19°575
126R89SIDES3RD ELECTRIC17Source Four 36°575
126R89SIDES3RD ELECTRIC16Source Four 26°575
126R89SIDES3RD ELECTRIC15Source Four 19°575
128NCSL BRANCHESSR LOWER TECH B3Source Four 26°575
129NCSL BRANCHESSR LOWER TECH B5Source Four 19°575
131TBDMIDCAT5Source Four 19°575
132TBDMIDCAT6Source Four 10°575
133TBDMIDCAT9Source Four 26°575
134TBDMIDCAT10Source Four 19°575
135TBDMIDCAT19Source Four 19°575
136TBDMIDCAT20Source Four 26°575
137TBDMIDCAT23Source Four 10°575
138TBDMIDCAT24Source Four 19°575
139TBDSL LOWER TECH B5Source Four 19°575
140TBDSL LOWER TECH B3Source Four 26°575
141TBDSL LOWER TECH B1Source Four 36°575
142TBDSL UPPER TECH B2Source Four 26°575
143TBDSL LOWER TECH B1Source Four 26°575
144TBDSR LOWER TECH B1Source Four 36°575
145TBDSR LOWER TECH B1Source Four 26°575
146TBDSR UPPER TECH B2Source Four 26°575
147TBDSR UPPER TECH B4Source Four 26°575
148TBDSR UPPER TECH B6Source Four 19°575
149TBDSL UPPER TECH B6Source Four 19°575
150TBDSL UPPER TECH B4Source Four 26°575
151LEDFOOTLIGHTAPRON1CYC LIGHT1K
152LEDFOOTLIGHTAPRON2CYC LIGHT1K
153LEDFOOTLIGHTAPRON3CYC LIGHT1K
